EMS50

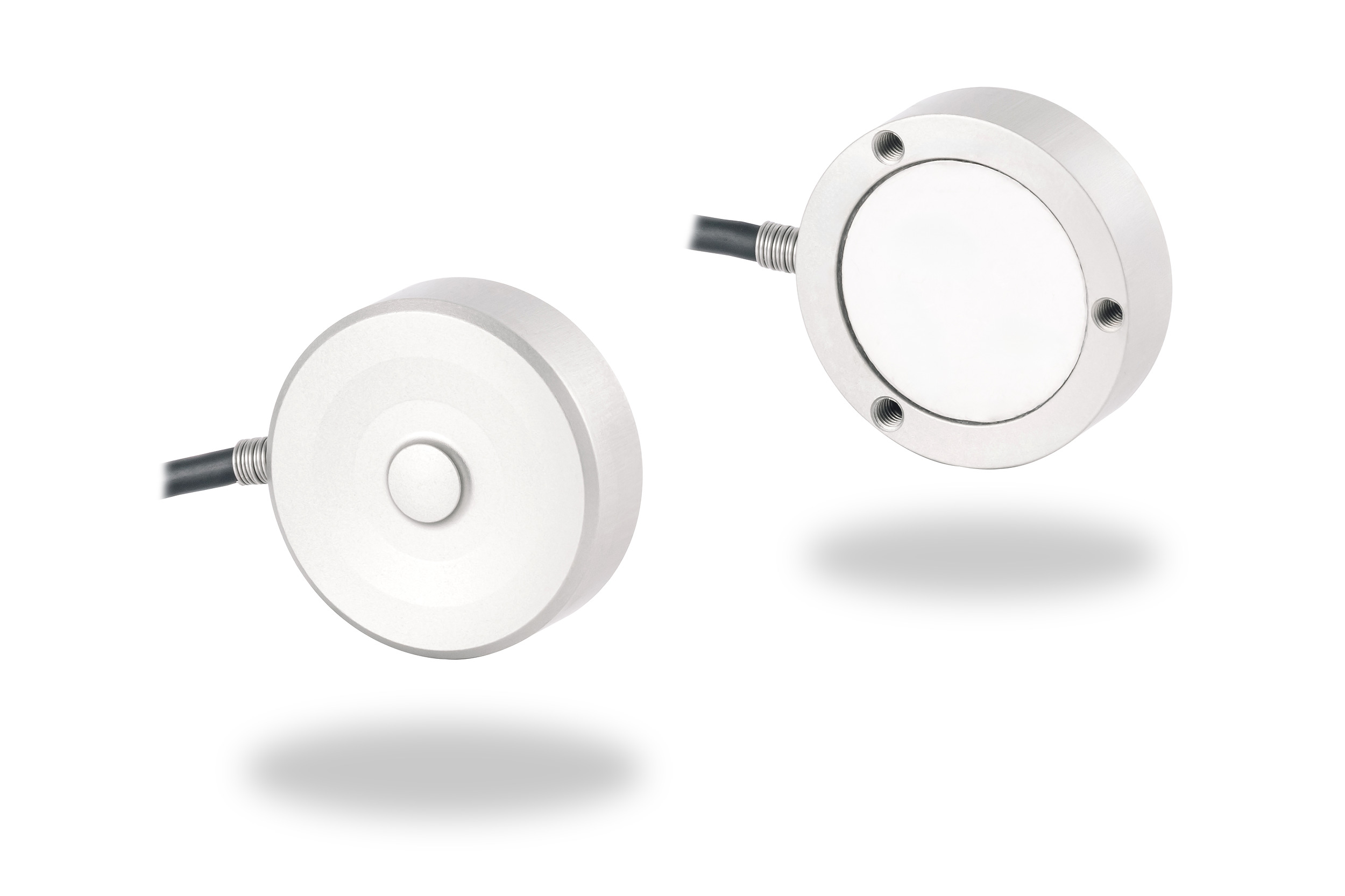

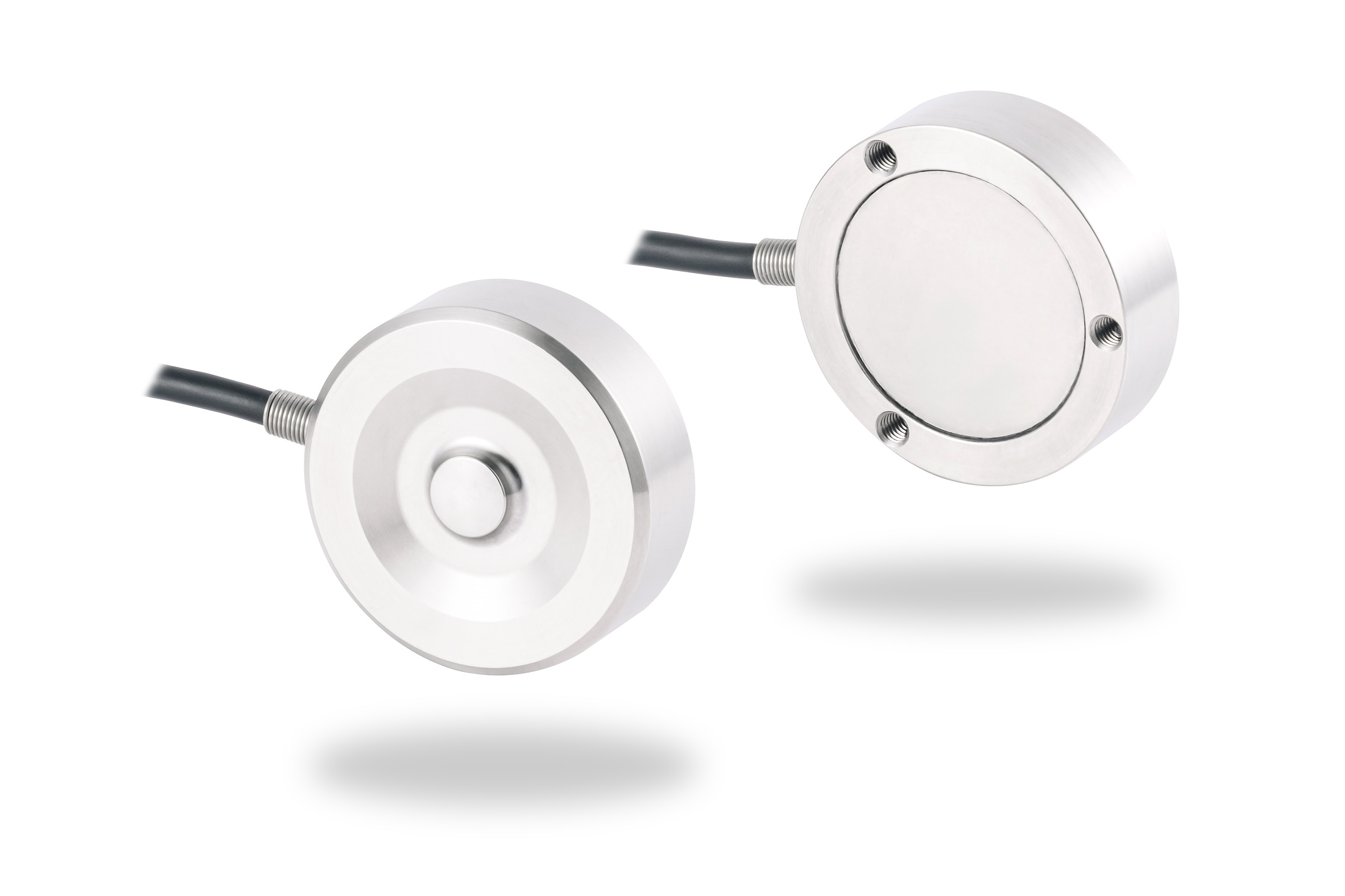

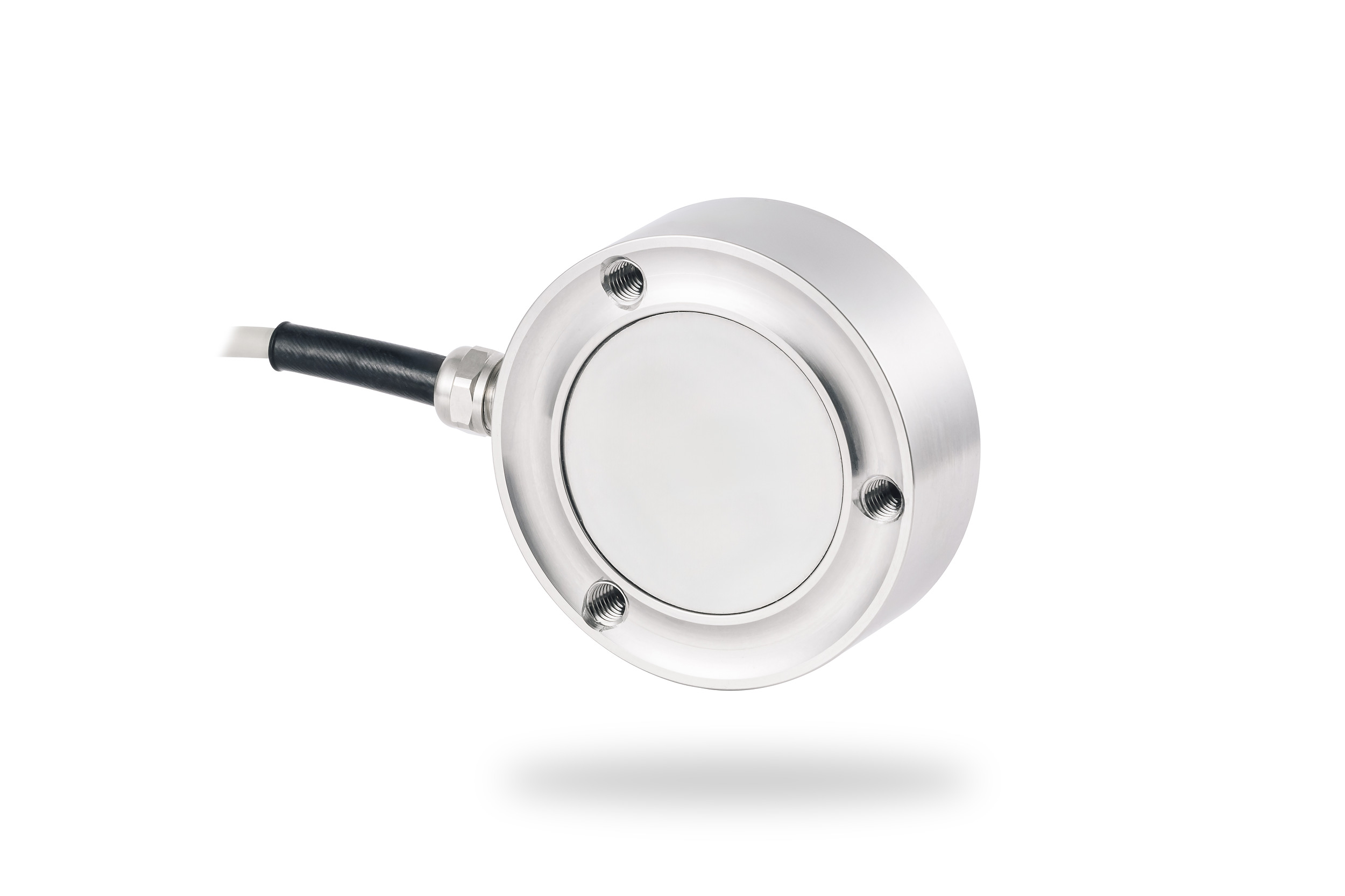

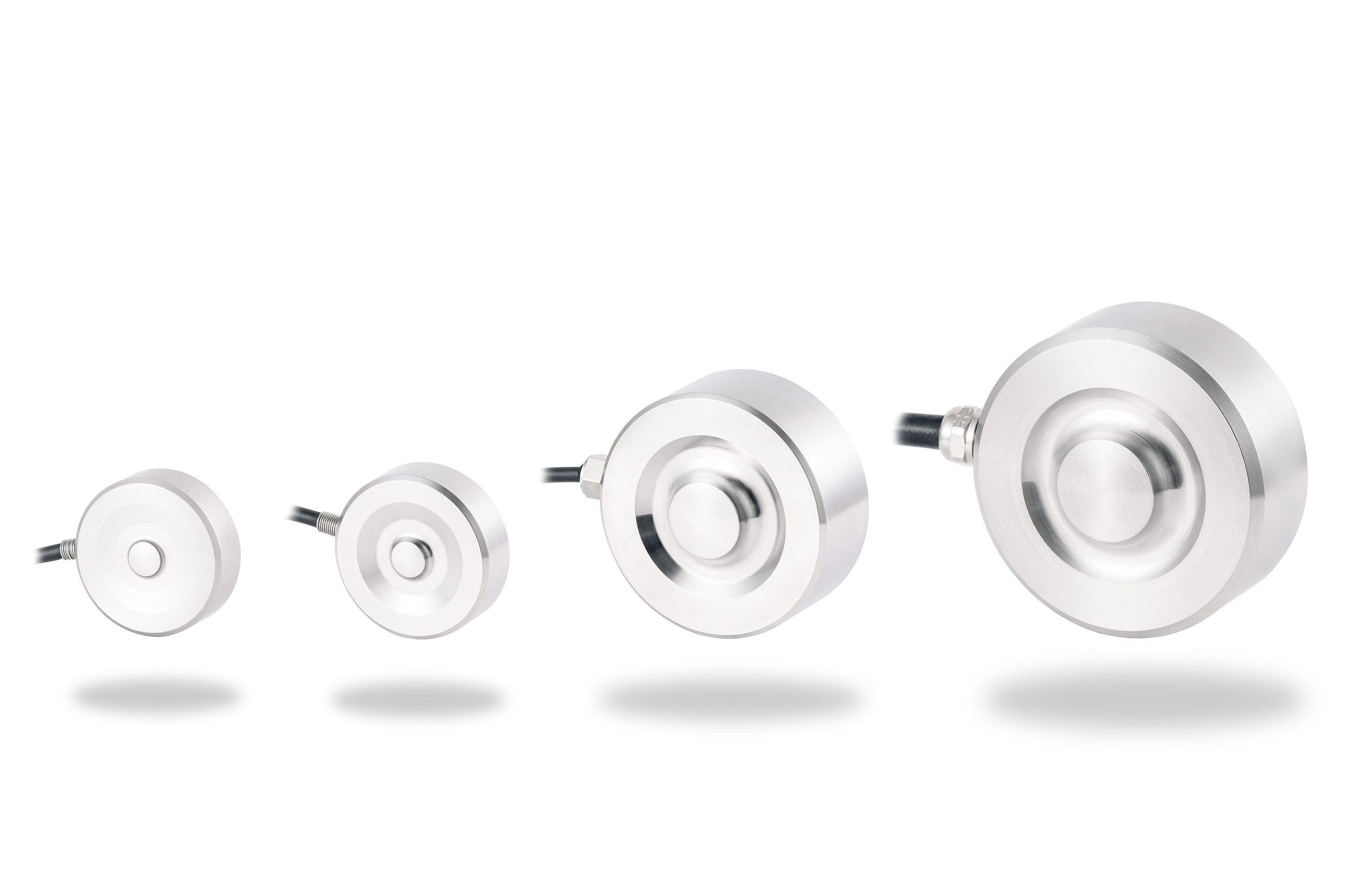

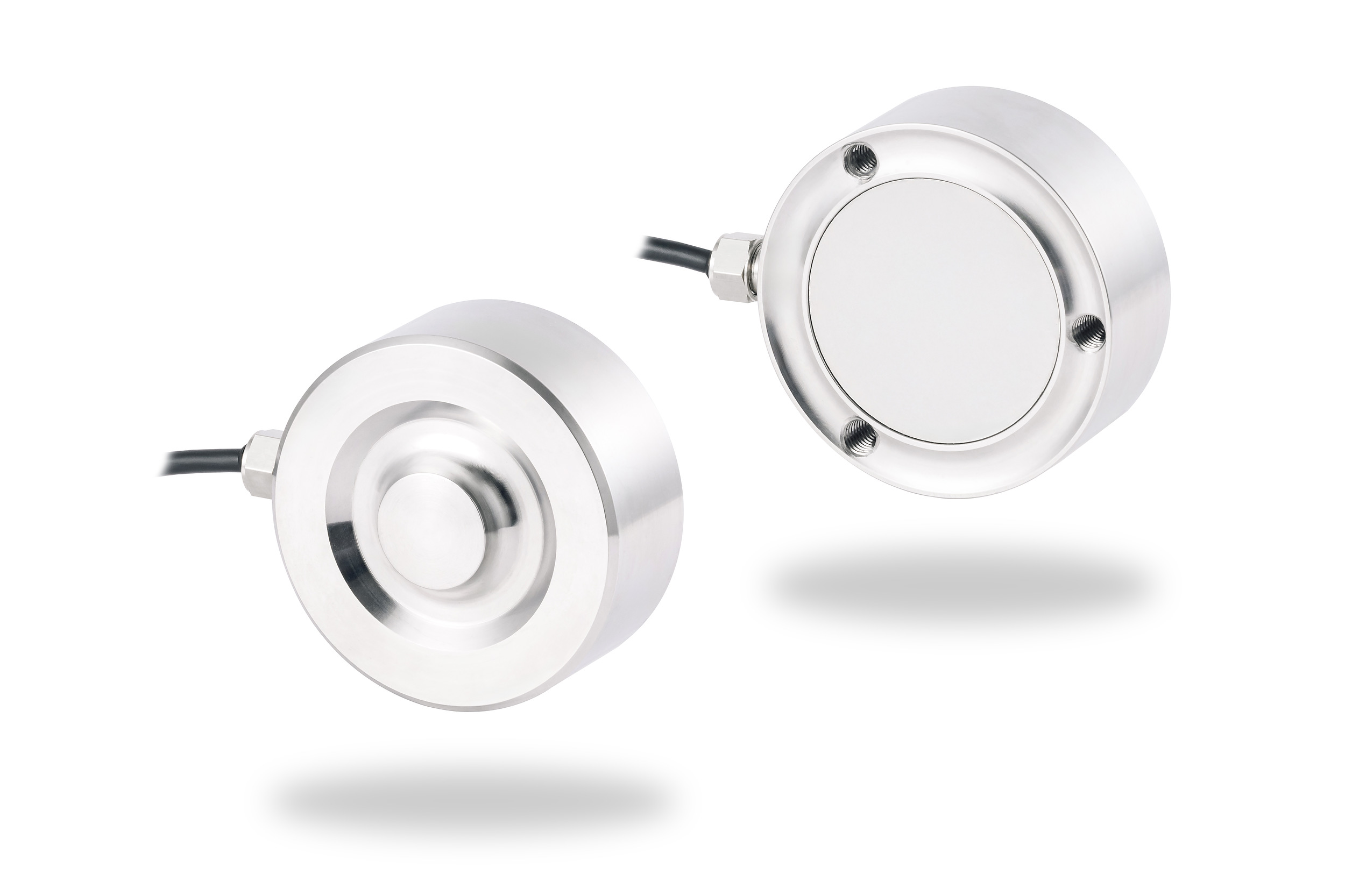

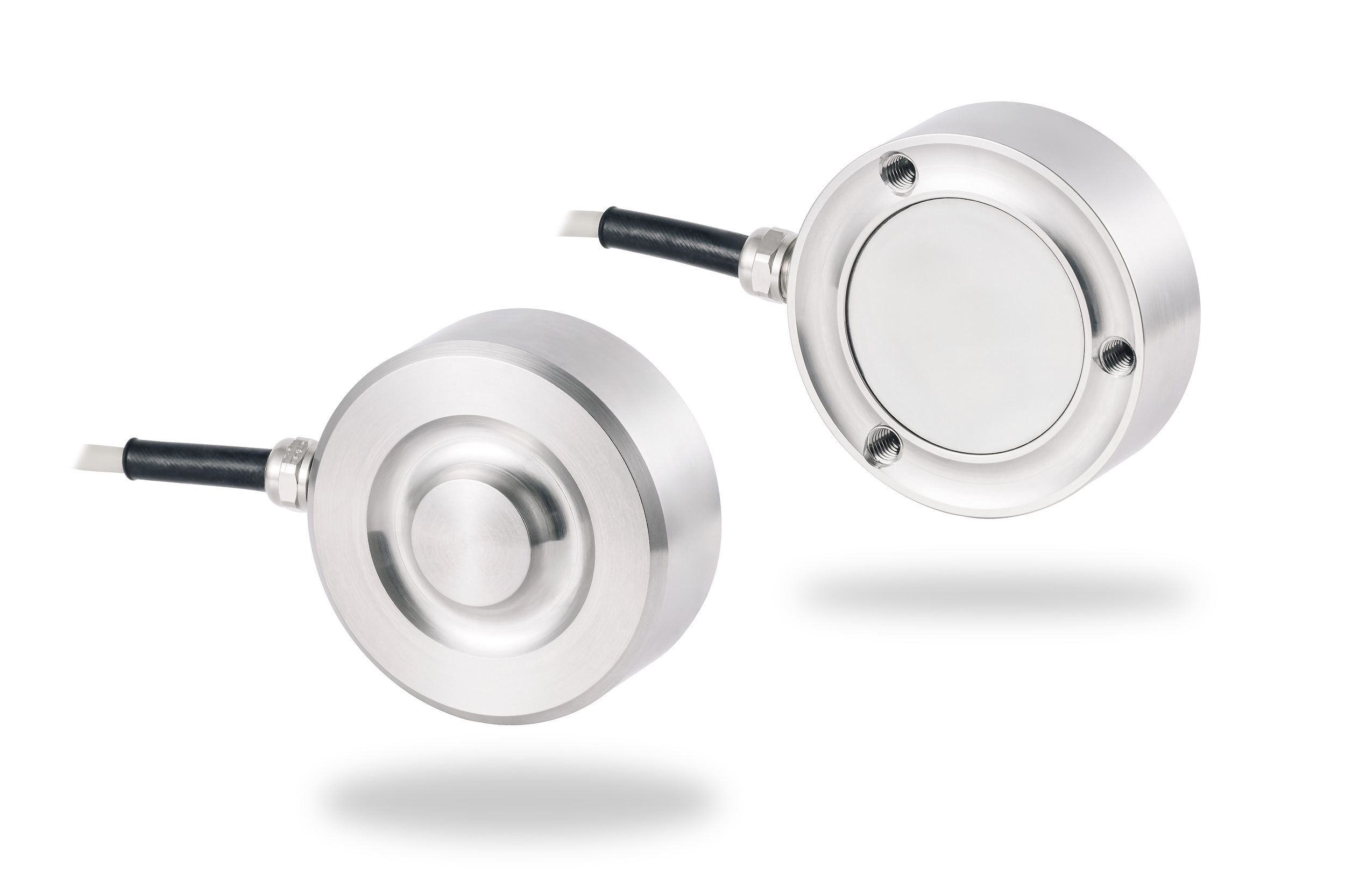

A universal membrane sensor for measuring pressure forces. It has a simple design, a wide measuring range and a favourable price. It is suitable for measuring forces on machines, as well as for weighing containers.
In Stock
Price
inc. VAT
Force range (Fn) 100; 200; 500 N 1; 2; 5 kN 10; 20; 50 kN 100; 200; 500 kN
Overload
- Safe150 % Fn
- Ultimate200 % Fn
- Permanent Static Load75 % Fn
- Dynamic Load50 % Fn
Nominal Sensitivity (Cn)1,0 ± 2 % mV/V1,5 ± 2 % mV/V
Zero Balance2 % F.S.
Non-linearity0,25 % F.S.0,5 % F.S.1,0 % F.S.
Hysteresis0,25 % F.S.0,5 % F.S.1,0 % F.S.
Creep (30 min)0,1 % F.S.
Temperature Effect
- Zero0,1 % F.S./10°C
- Output0,1 % F.S./10°C
Bridge Resistance
- Input380 ± 10 % Ω
- Output350 ± 5 % Ω
Insulation Impedance> 500 MΩ
Excitation
- Recommended5 ... 10 V
- Maximal12 V
Temperature Range
- Nominal (Compensated) 0 ... 50 °C
- Operating -10 ... 70 °C
ProtectionIP54
Cable
- TypeLifYDY 4 x 0,05LifYDY 4 x 0,14
- Length 2 m
